AUTODOME IP 5000i IR
High-performance PTZ camera with intelligent IR illumination
Scroll ↓
Keep your security in focus with the many features of the AUTODOME IP 5000i IR camera. The camera is carefully tuned to deliver detailed 1080p60 HD images during daylight and full details under low-light or no light conditions with the intelligent IR illuminator. The illuminator automatically adjusts the IR intensity according to zoom and field of view to ensure that the scene is illuminated uniformly.
| Imager | 1/2.8” progressive scan CMOS |
| Effective Picture Elements | 1945 x 1097 (2.13 MP) |
| Lens | 30x zoom, 4.5 mm - 135 mm (F1.6 - F4.4) |
| Optical Zoom FOV | 2.4° - 60.9° |
| Focus | Automatic with manual override |
| Iris | Automatic |
| Digital Zoom | 16x |
| Video Sensitivity | Color: 0.05 lx, Mono: 0.01 lx, With IR: 0 lx |
| High Dynamic Range | 94 dB (IEC 62676 Part 5) |
| Electronic Shutter Speed (AES) | 1/30 s to 1/15000 s (12 steps) |
| SNR | >55 dB (AGC off) |
| Noise Reduction | Intelligent Dynamic Noise Reduction |
| Backlight Compensation | On / Off |
| Intelligent Defog | Auto / Off, adjusts parameters for best picture in fog/mist |
| White Balance | Standard Auto, Sodium Lamp Auto, Basic Auto, Manual, Hold, Dominant Color Auto |
| Day/Night | Mechanical switchable IR filter (Auto / On / Off), Monochrome |
| IR LEDs | Number: 4, Wavelength: 850 nm, Distance: 180 m, Beam Angle: Wide 36°, Narrow 6.3° |
| Video Content Analysis | Analysis: Essential Video Analytics Configurations: Silent VCA/Profile1-16 Alarm rules: Any object, Object in field, Crossing line, Entering field, Leaving field, Loitering, Following route, Idle object, Removed object, Counter, Occupancy, Crowd detection, Condition change, Similarity search, Tampering Object filters: Duration, Size, Aspect ratio v/h, Speed, Direction, Color Object classes: Upright persons, Bikes, Cars, Trucks Calibration: Automatic self-calibrating |
| Mechanical | Pan/Tilt Modes: Normal 0.1°/s - 120°/s, Turbo: Pan 0.1°/s - 240°/s, Tilt 0.1°/s - 120°/s Preset Speed: Pan 240°/s, Tilt 160°/s Pan Range: 360° continuous Tilt Angle: -90° to 3° Preposition Accuracy: ±0.1° Pre-positions: 256 Tours: Recorded tours (2, max 15 min), Pre-position tour (1, up to 256 scenes, 1 customized up to 64 scenes) |
| Electrical | Input voltage: 24 VAC and PoE+ Power consumption: 20 W (IR off) / 25 W (IR on) |
| Software Control | Unit discovery: IP helper, Control via web browser, Bosch VMS, Video Client, Firmware updates via network/Bosch download |
| Network | Video compression: H.265, H.264, M-JPEG Streaming: Multiple configurable streams Frame rate: 60 fps Resolution: 1080p, 720p, D1 4:3 (cropped), SD 432p / 288p IP delay: 200 ms Bitrate (H.265): 1080p/720p — 60 fps: 1649/1249, 30 fps: 1413/1096, 15 fps: 1157/902, 10 fps: 1075/841, 5 fps: 746/597, 2 fps: 407/343 Ethernet: 10/100BASE-T Encryption: TLS 1.0, SSL, DES, 3DES, AES Protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA, NTP, SNMP V1/V3, 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP, DiffServ, LLDP, SOAP, Dropbox™, CHAP, Digest authentication Interoperability: ONVIF Profile S/G, GB/T 28181 |
| Audio | Compression: G.711, L16, AAC; Interface: 1/1 Channel In/Out |
| Local Storage | microSDHC up to 32 GB / microSDXC up to 2 TB (Class 6+ recommended) |
| Fiber Optic Kit (optional) | VG4-SFPSCKT media converter kit; SFP modules: SFP-2,3,25,26; Data Rate: 10/100 Mbps; Weight: 0.23 kg; Dimensions: 55.5-63.8 x 13.5 x 8.5 mm; Connector: LC/SC; Max Distance: 2-20 km depending on fiber type |
| Miscellaneous | Sector/Titling: 16 sectors, Privacy Masks: 24 configurable, Languages: English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Japanese, Chinese |
| User Connections / Power / Alarm | RJ45 10/100 Base-T PoE+ (IEEE 802.3at, class 4) 21-30 VAC, 50/60 Hz Alarm Inputs: 2 Alarm Outputs: 1 relay 32 VDC, 150 mA max Audio: 1x mono line in, 1x mono line out |
| Environmental | IP66; Operating temp: -40 ºC to +60 ºC; Humidity: Up to 90% RH; Storage temp: -40 ºC to +60 ºC |
| Construction | Dimensions (DIA x H): 207 mm x 346.6 mm Weight: 4.6 kg Housing Material: Aluminum Sunshield: Outdoor |
- Imager1/2.8” progressive scan CMOS
- Effective Picture Elements1945 x 1097 (2.13 MP)
- Lens30x zoom, 4.5 mm - 135 mm (F1.6 - F4.4)
- Optical Zoom FOV2.4° - 60.9°
- FocusAutomatic with manual override
- IrisAutomatic
- Digital Zoom16x
- Video SensitivityColor: 0.05 lx, Mono: 0.01 lx, With IR: 0 lx
- High Dynamic Range94 dB (IEC 62676 Part 5)
- Electronic Shutter Speed (AES)1/30 s to 1/15000 s (12 steps)
- SNR>55 dB (AGC off)
- Noise ReductionIntelligent Dynamic Noise Reduction
- Backlight CompensationOn / Off
- Intelligent DefogAuto / Off, adjusts parameters for best picture in fog/mist
- White BalanceStandard Auto, Sodium Lamp Auto, Basic Auto, Manual, Hold, Dominant Color Auto
- Day/NightMechanical switchable IR filter (Auto / On / Off), Monochrome
- IR LEDsNumber: 4, Wavelength: 850 nm, Distance: 180 m, Beam Angle: Wide 36°, Narrow 6.3°
- Video Content AnalysisAnalysis: Essential Video Analytics
Configurations: Silent VCA/Profile1-16
Alarm rules: Any object, Object in field, Crossing line, Entering field, Leaving field, Loitering, Following route, Idle object, Removed object, Counter, Occupancy, Crowd detection, Condition change, Similarity search, Tampering
Object filters: Duration, Size, Aspect ratio v/h, Speed, Direction, Color
Object classes: Upright persons, Bikes, Cars, Trucks
Calibration: Automatic self-calibrating - MechanicalPan/Tilt Modes: Normal 0.1°/s - 120°/s, Turbo: Pan 0.1°/s - 240°/s, Tilt 0.1°/s - 120°/s
Preset Speed: Pan 240°/s, Tilt 160°/s
Pan Range: 360° continuous
Tilt Angle: -90° to 3°
Preposition Accuracy: ±0.1°
Pre-positions: 256
Tours: Recorded tours (2, max 15 min), Pre-position tour (1, up to 256 scenes, 1 customized up to 64 scenes) - ElectricalInput voltage: 24 VAC and PoE+
Power consumption: 20 W (IR off) / 25 W (IR on) - Software ControlUnit discovery: IP helper, Control via web browser, Bosch VMS, Video Client, Firmware updates via network/Bosch download
- NetworkVideo compression: H.265, H.264, M-JPEG
Streaming: Multiple configurable streams
Frame rate: 60 fps
Resolution: 1080p, 720p, D1 4:3 (cropped), SD 432p / 288p
IP delay: 200 ms
Bitrate (H.265): 1080p/720p — 60 fps: 1649/1249, 30 fps: 1413/1096, 15 fps: 1157/902, 10 fps: 1075/841, 5 fps: 746/597, 2 fps: 407/343
Ethernet: 10/100BASE-T
Encryption: TLS 1.0, SSL, DES, 3DES, AES
Protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA, NTP, SNMP V1/V3, 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP, DiffServ, LLDP, SOAP, Dropbox™, CHAP, Digest authentication
Interoperability: ONVIF Profile S/G, GB/T 28181 - AudioCompression: G.711, L16, AAC; Interface: 1/1 Channel In/Out
- Local StoragemicroSDHC up to 32 GB / microSDXC up to 2 TB (Class 6+ recommended)
- Fiber Optic Kit (optional)VG4-SFPSCKT media converter kit; SFP modules: SFP-2,3,25,26; Data Rate: 10/100 Mbps; Weight: 0.23 kg; Dimensions: 55.5-63.8 x 13.5 x 8.5 mm; Connector: LC/SC; Max Distance: 2-20 km depending on fiber type
- MiscellaneousSector/Titling: 16 sectors, Privacy Masks: 24 configurable, Languages: English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Japanese, Chinese
- User Connections / Power / AlarmRJ45 10/100 Base-T PoE+ (IEEE 802.3at, class 4)
21-30 VAC, 50/60 Hz
Alarm Inputs: 2
Alarm Outputs: 1 relay 32 VDC, 150 mA max
Audio: 1x mono line in, 1x mono line out - EnvironmentalIP66; Operating temp: -40 ºC to +60 ºC; Humidity: Up to 90% RH; Storage temp: -40 ºC to +60 ºC

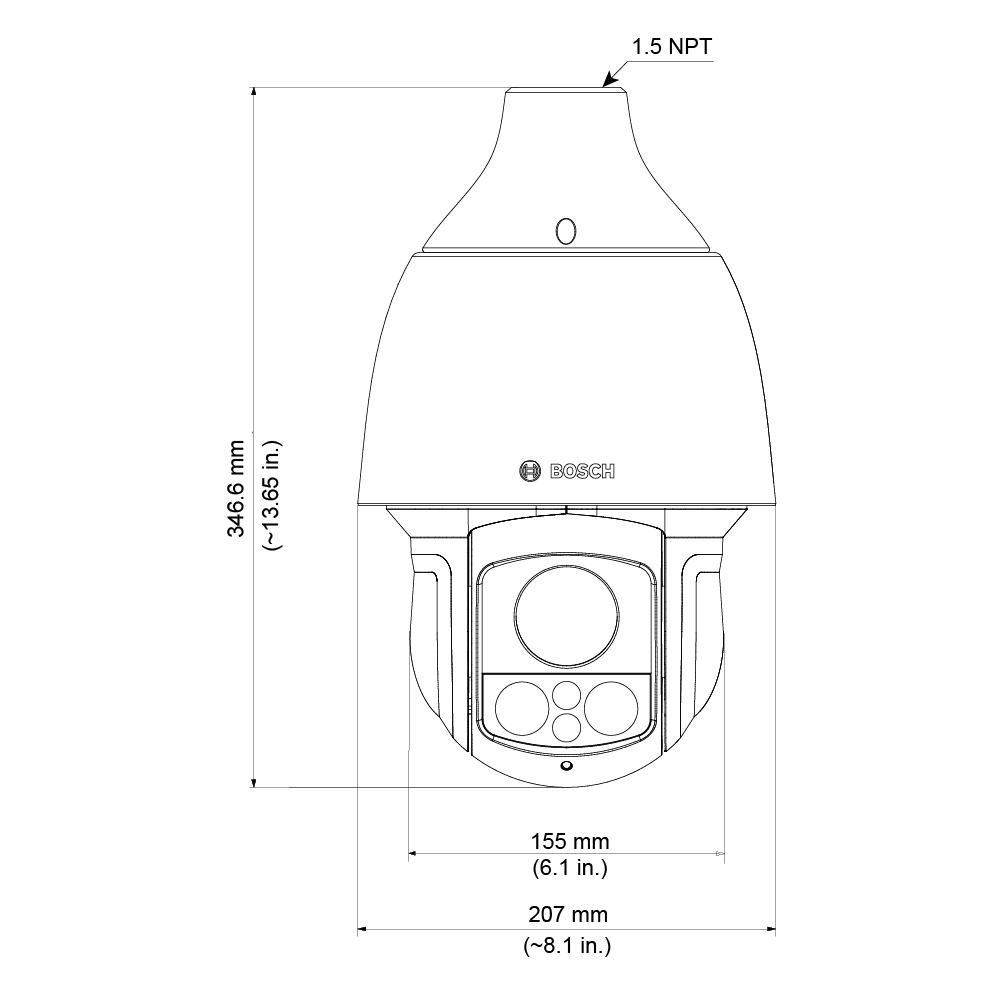

- ConstructionDimensions (DIA x H): 207 mm x 346.6 mm
Weight: 4.6 kg
Housing Material: Aluminum
Sunshield: Outdoor
