ELF MU
Multi-Functional Thermal Monocular
The ELF MU Four-in-One Versatile Thermal Camera is equipped with a high-performance 640×512 infrared detector. It boasts a lightweight and compact design, along with an extended battery life.

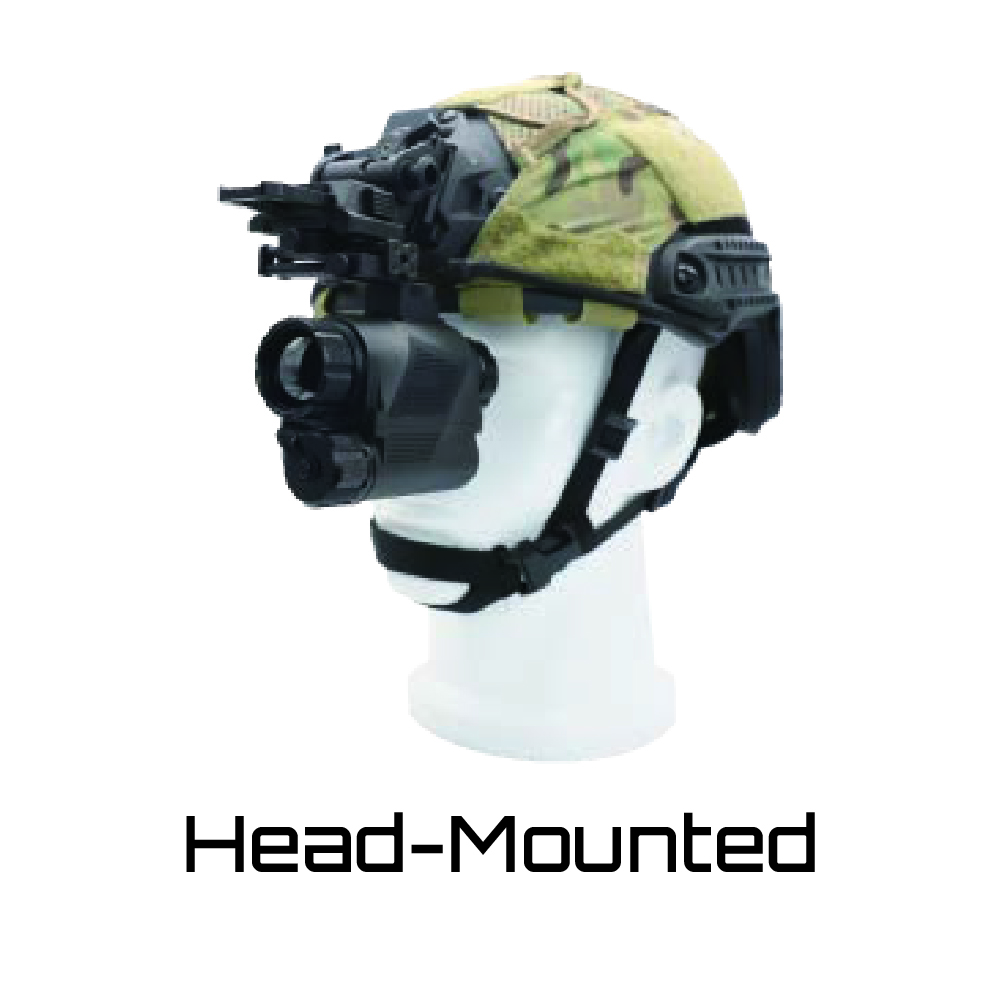

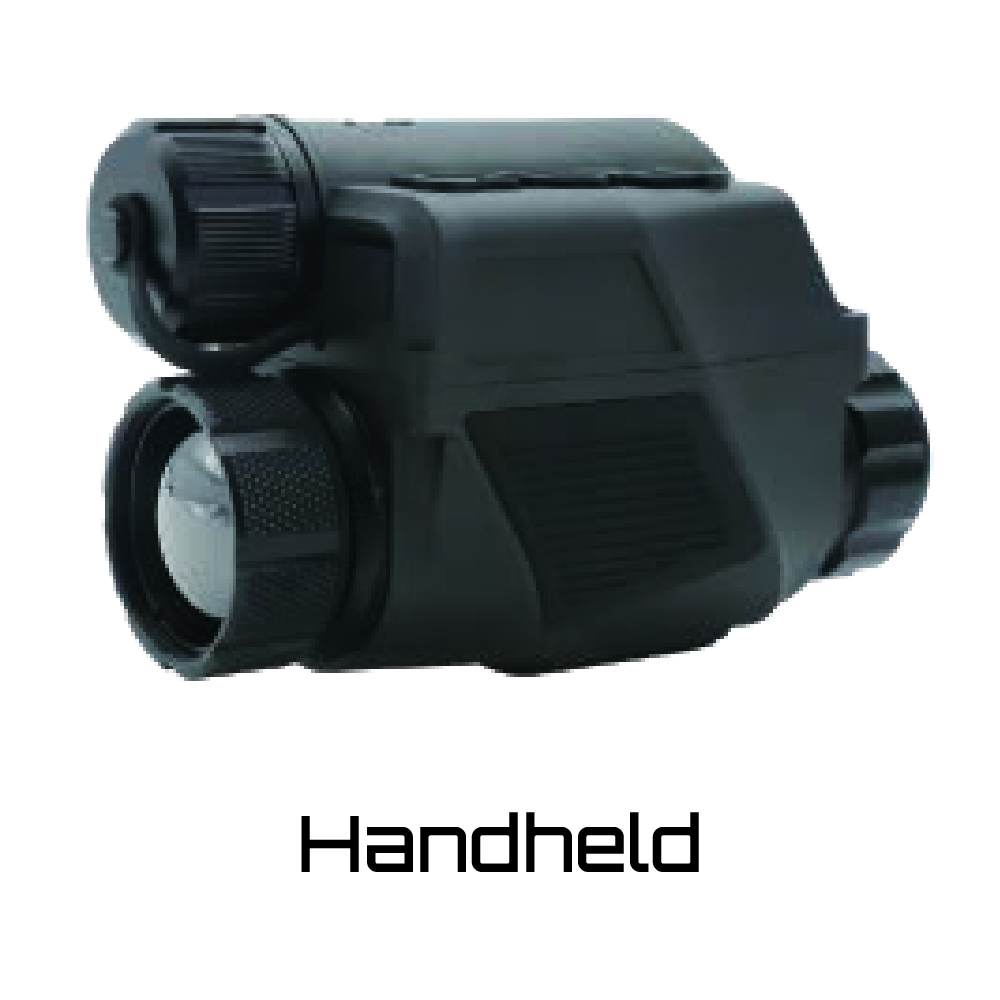

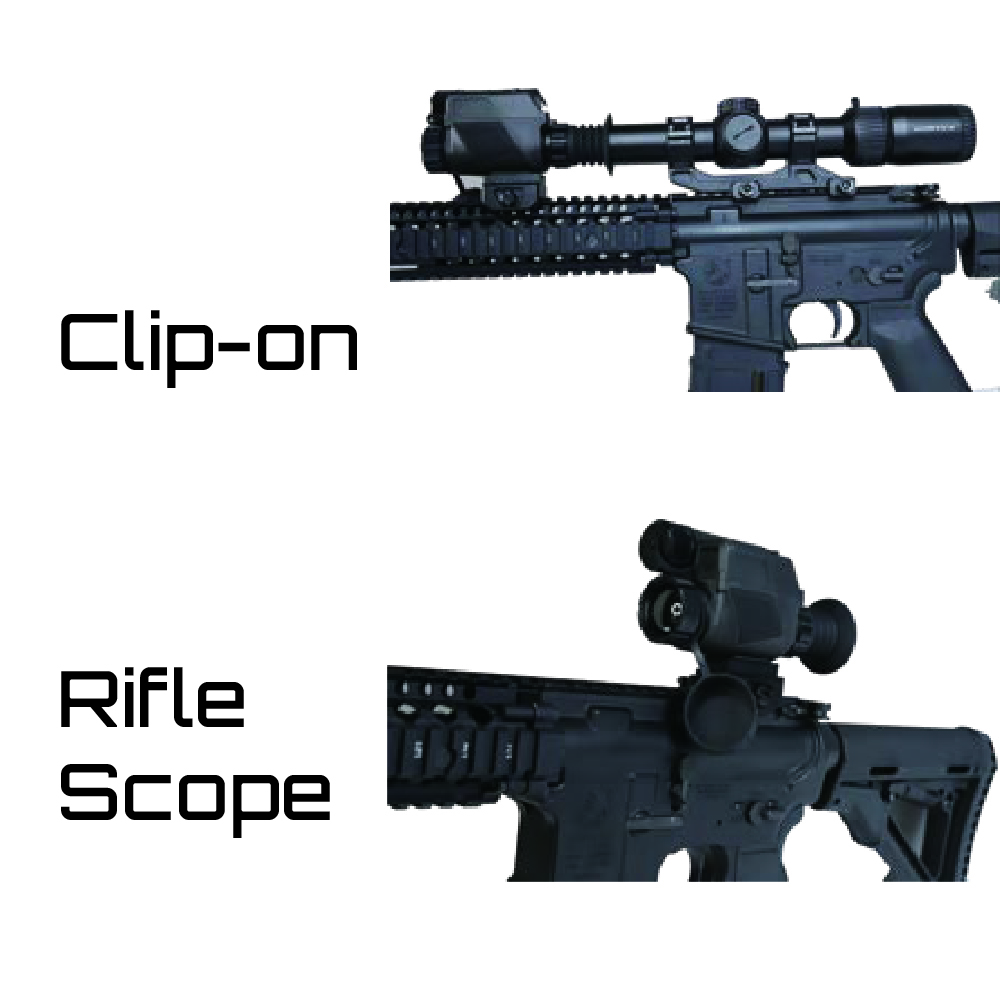

This product offers multiple functions, including handheld, head-mounted, gun scope, and clip-on applications, offering users a versatile experience with a single device serving multiple purposes.
| Magnification (×) | 1 |
| Adjustment, D | -2.5 |
| Resolution (Pixels) | 640 × 512 |
| Pixel Pitch (μm) | 12 |
| NETD (mK) | < 25 |
| Frame Rate (Hz) | 50 |
| Lens System (mm) | 26.7 F1.0 |
| FOV (°) | 16.3 × 12.3 |
| Resolution (OLED) | 1024 × 768 |
| Immersion | IP67 |
| Operating Temperature Range (℃) | -20 ~ +50 |
| Battery Type | 18650 × 1 |
| Battery Life (h) | ≤ 10 |
| Dimensions (mm) | 113 × 70 × 48 |
| Weight (g) | 270 |
- Magnification (×)1
- Adjustment, D-2.5
- Resolution (Pixels)640 × 512
- Pixel Pitch (μm)12
- NETD (mK)< 25
- Frame Rate (Hz)50
- Lens System (mm)26.7 F1.0
- FOV (°)16.3 × 12.3
- Resolution (OLED)1024 × 768
- ImmersionIP67
- Operating Temperature Range (℃)-20 ~ +50
- Battery Type18650 × 1
- Battery Life (h)≤ 10
- Dimensions (mm)113 × 70 × 48
- Weight (g)270
