Orion-7 Manpack "Drone Slayer" is a compact, field-deployable counter-UAS (unmanned aerial system) designed for detection, identification, and mitigation of drone threats.

The system integrates drone detection and anti-drone jamming capabilities into a backpack form factor, allowing security forces, border guards, critical infrastructure operators, or event security teams to counter unauthorized UAVs efficiently.

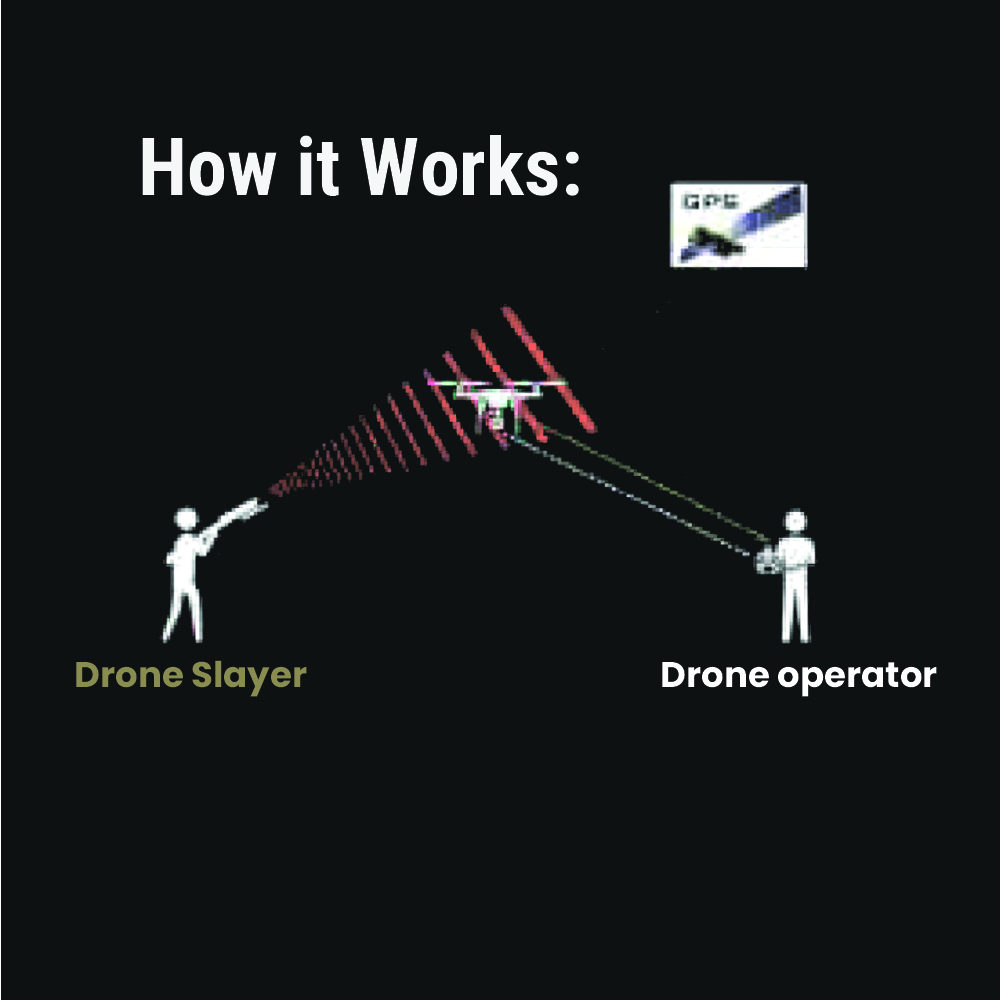

With an effective operational range of up to 1,500 meters, Orion-7 Manpack can disrupt drone command & control links, telemetry, video feeds, and GPS reception.

Key Features:

Integrated detection and jamming capabilities in a portable package
Effective range of up to 1,500 meters for drone neutralization
Disrupts command & control, telemetry, video feeds, and GPS signals

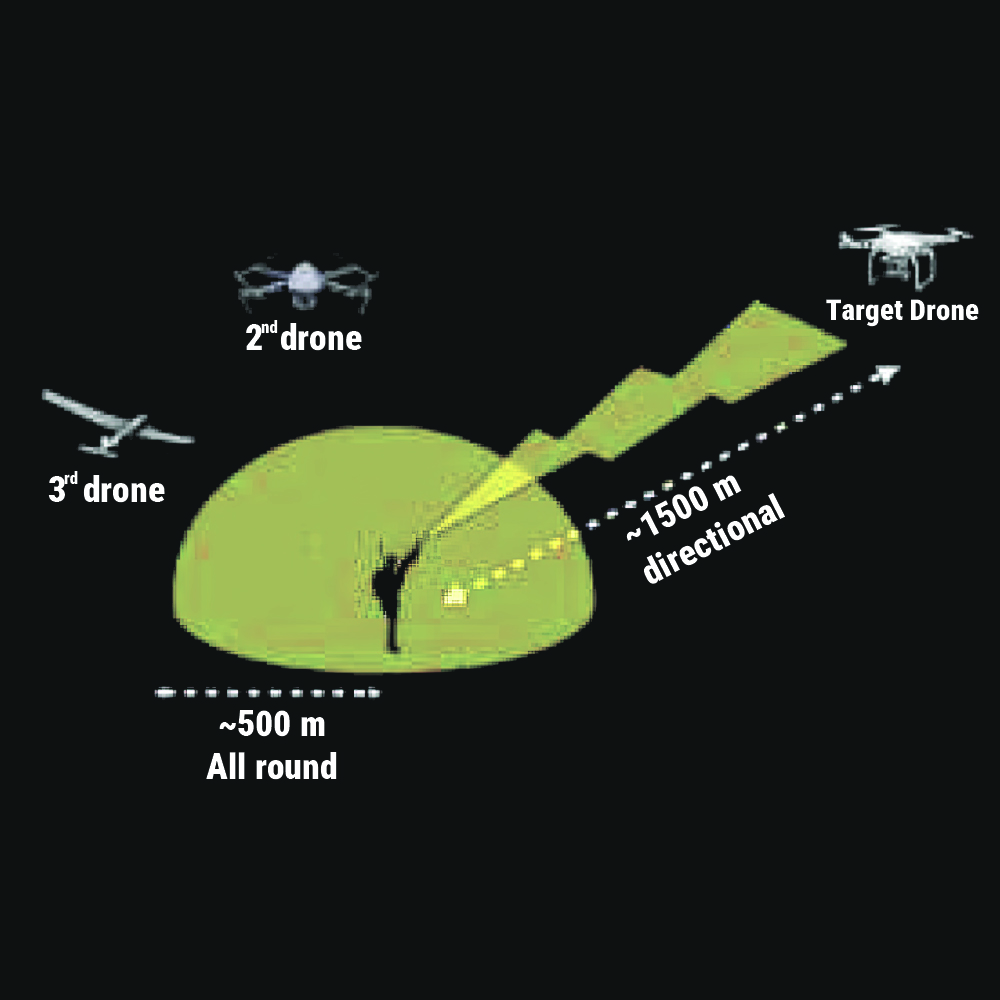

360° coverage in passive detection mode
Real-time frequency spectrum monitoring and 3D direction-finding

Deployment Scenarios:

The Orion-7 Manpack is ideal for security checkpoints, VIP protection, critical infrastructure security, border patrol, event security, and mobile patrol operations.

System type	Manpack / backpack counter-UAS system
Detection / DF	Real-time frequency spectrum monitoring and 3D direction-finding
Frequency coverage	~9 kHz up to 6 / 40 GHz (depending on configuration)
Coverage & tracking	360° coverage; multi-target tracking with 3D position
Detection range	~1–5 km (depends on target)
Mitigation / Jamming range	Up to ~1,500 m
Weight	Approximately 12 kg (including battery)
Battery Life	Up to 4 hours of continuous operation

System typeManpack / backpack counter-UAS system
Detection range~1–5 km (depends on target)
Mitigation / Jamming rangeUp to ~1,500 m
WeightApproximately 12 kg (including battery)
Battery LifeUp to 4 hours of continuous operation
