Intercept System
Pro-Catcher-D
Cellular Threat Detection
PRO-CATCHER-D is a next-generation solution designed to monitor the cellular environment and detect malicious base station emulation, including IMSI catchers and man-in-the-middle interception systems. With the growing availability and affordability of such technologies, the risk of cellular espionage has become a serious concern. Devices that mimic legitimate network operators can trace, locate, manipulate cellular services, and even intercept subscriber communications within ranges of tens or hundreds of meters.
As a counter-intelligence solution, PRO-CATCHER-D provides continuous scanning and real-time detection of virtual, fake, or emulated base stations. It delivers accurate identification, mapping, and data collection to safeguard sensitive operations, protect personnel, and ensure the integrity of secure environments.
| Main Functions |
• Scanning of radio-environment in GSM / UMTS / LTE / NR (5G NSA) standards • Collection of base stations data: - GSM: PLMN, Operator, Band, ARFCN, MHz, BSIC, RSSI, LAC, CID, BTS ID, sector, C1, C2, RAC, T3212, SIB, neighboring cells - UMTS: PLMN, Operator, Band, UARFCN, PSC, MHz, RSCP, LAC, UTRAN ID, RNCid, CID, eNB ID, sector, RAC, T3212, SIB, neighboring cells - LTE: PLMN, Operator, Band, Duplex, EARFCN, PCI, MHz, RSRP, TAC, CID, eNB ID, sector, bandwidth, MIMO, SIB, neighboring cells - NR: PLMN, Operator, Band, Duplex, EARFCN DL, PCI, SCS, MHz, RSRP, TAC, CID, eNB ID, sector, EARFCN UL, bandwidth, SIB • Detection of Virtual / Fake / Emulated base stations • Collection and storage of system information blocks (SIBs) • Mapping of detected Virtual / Fake / Emulated base stations • Storage and Export of collected data |
| System Configuration |

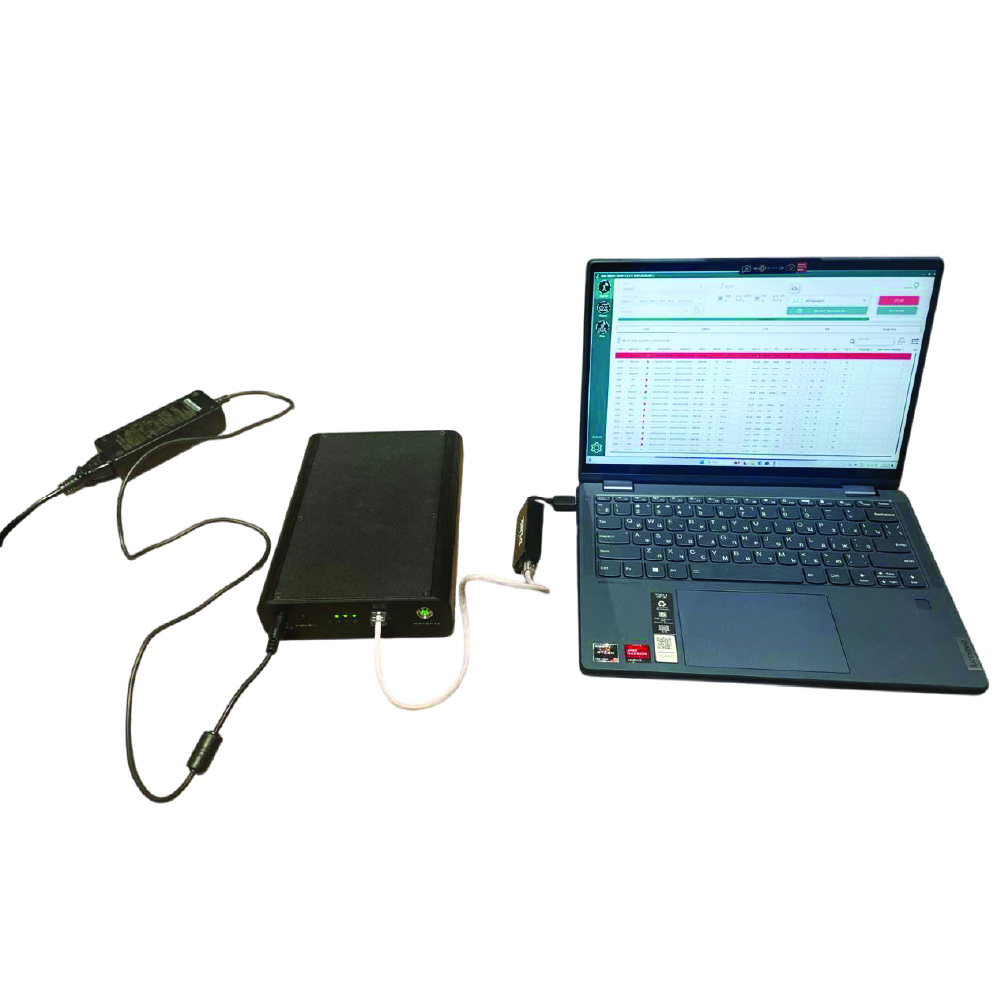

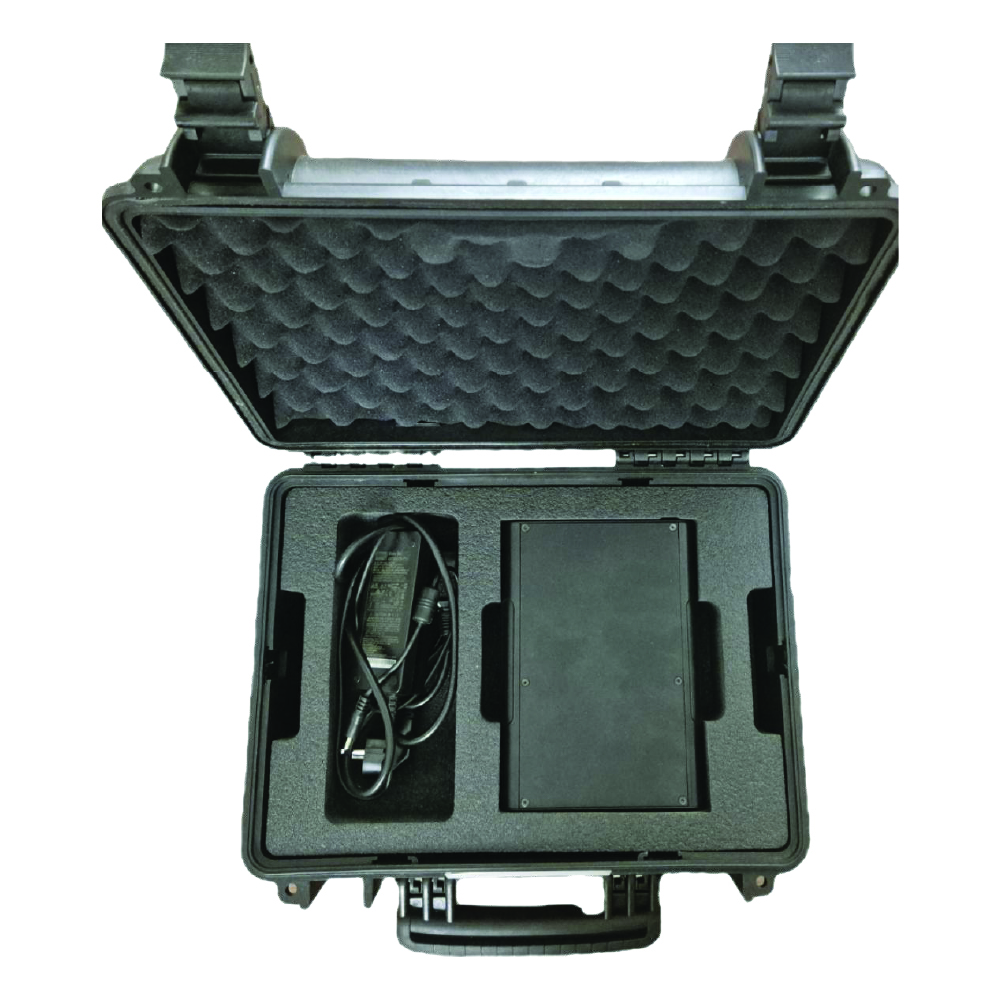

• Main unit • Power unit (15W / 220V) • Software license (for Windows laptop) • HAPS key • Transportation case |
| Supported Cellular Standards | GSM (2G), UMTS (3G), LTE (4G – FDD/TDD), NR (5G NSA) |
| Radio Standards Bands |
GSM: GSM 850, GSM 900, DSC 1800, PCS 1900 UMTS: UMTS800 (B6, B19), UMTS850 (B5), UMTS900 (B8), UMTS1900 (B2), UMTS2100 (B1, B4) LTE: LTE700 (B12, B13, B28), LTE800 (B18, B19, B20), LTE850 (B5, B26), LTE900 (B8), LTE1800 (B3), LTE1900 (B2, B25, B39), LTE2100 (B1, B4, B66), LTE2300 (B40), LTE2600 (B7, B38, B41) NR: NR600 (n71), NR700 (n12, n28), NR800 (n20), NR850 (n5), NR900 (n8), NR1800 (n3), NR1900 (n2, n25), NR2100 (n1, n66), NR2300 (n40), NR2600 (n7, n41), NR3500 (n78), NR3700 (n77), NR4700 (n79) |
| Mechanical |
Power consumption: 60 Watt / 15V Autonomous operation: Up to 90 minutes Dimensions: 215 × 155 × 50 mm Weight: 1.60 kg |
| Software License | For Windows OS |
| Protection | VSWR, overheat, unauthorized equipment modifications |
- Main FunctionsScanning of radio-environment in GSM / UMTS / LTE / NR (5G NSA) standards; Collection of base stations data; Detection of Virtual / Fake / Emulated base stations; Collection and storage of system information blocks (SIBs); Mapping of detected Virtual / Fake / Emulated base stations; Storage and Export of collected data
- System ConfigurationMain unit; Power unit (15W / 220V); Software license (for Windows laptop); HAPS key; Transportation case
- Supported Cellular StandardsGSM (2G), UMTS (3G), LTE (4G – FDD/TDD), NR (5G NSA)
- Radio Standards BandsGSM: GSM 850, GSM 900, DSC 1800, PCS 1900; UMTS: UMTS800 (B6, B19), UMTS850 (B5), UMTS900 (B8), UMTS1900 (B2), UMTS2100 (B1, B4); LTE: LTE700 (B12, B13, B28), LTE800 (B18, B19, B20), LTE850 (B5, B26), LTE900 (B8), LTE1800 (B3), LTE1900 (B2, B25, B39), LTE2100 (B1, B4, B66), LTE2300 (B40), LTE2600 (B7, B38, B41); NR: NR600 (n71), NR700 (n12, n28), NR800 (n20), NR850 (n5), NR900 (n8), NR1800 (n3), NR1900 (n2, n25), NR2100 (n1, n66), NR2300 (n40), NR2600 (n7, n41), NR3500 (n78), NR3700 (n77), NR4700 (n79)
- MechanicalPower consumption: 60 Watt / 15V; Autonomous operation: Up to 90 minutes; Dimensions: 215 × 155 × 50 mm; Weight: 1.60 kg
- Software LicenseFor Windows OS
- ProtectionVSWR, overheat, unauthorized equipment modifications
